Description

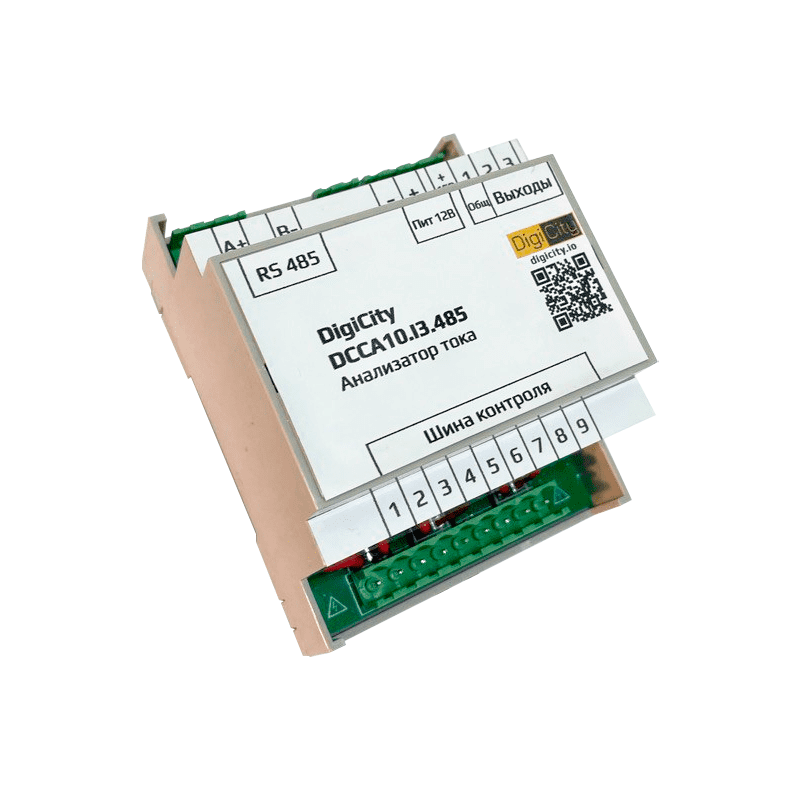

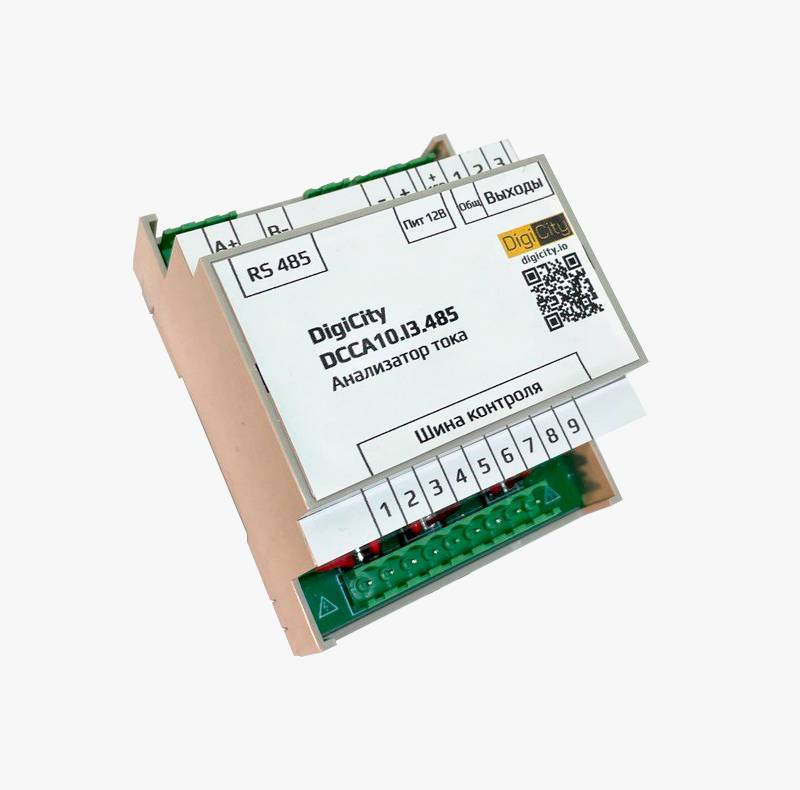

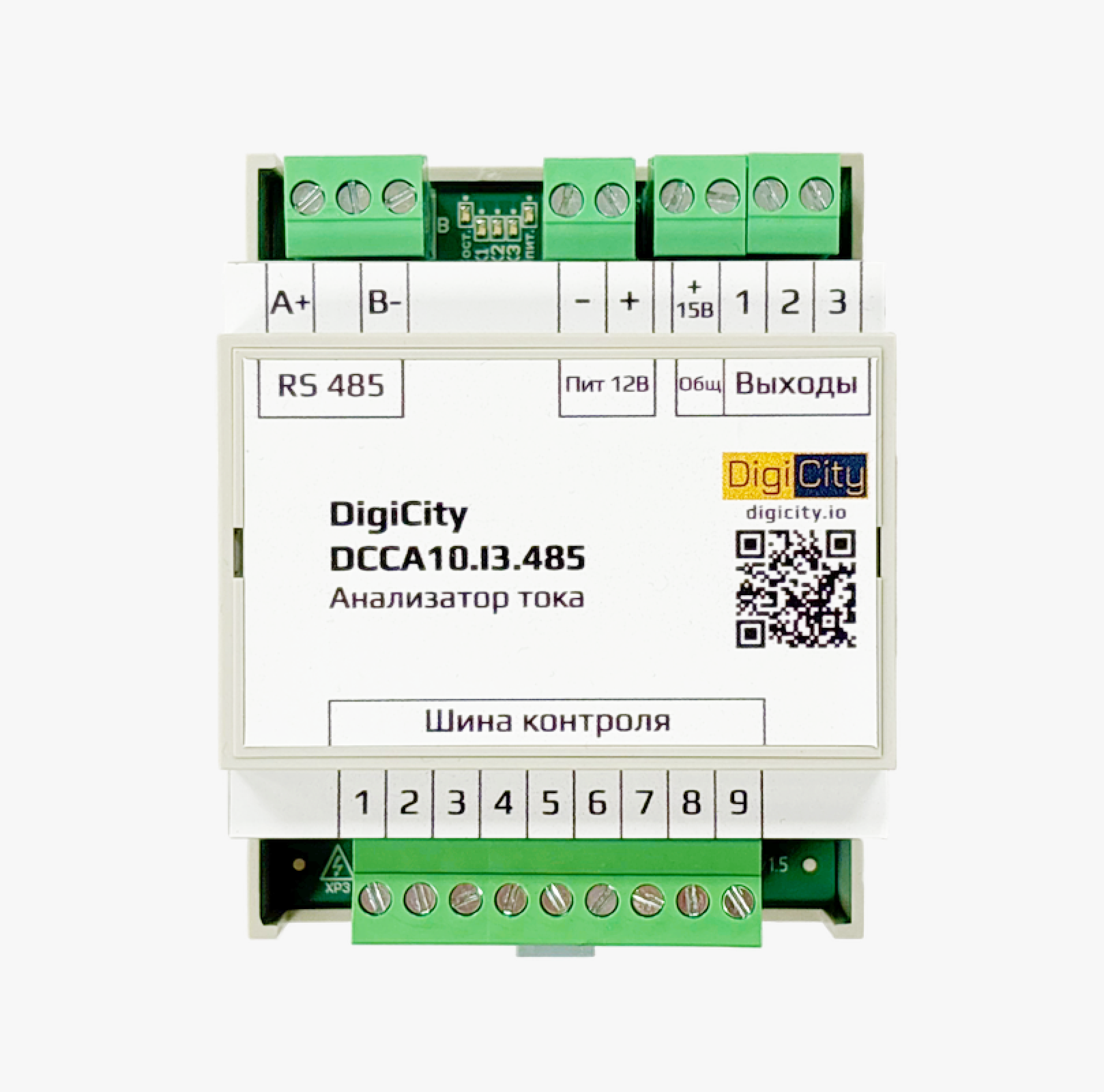

The DCCA10.I3.485 current analyzer allows you to monitor the current value in controlled circuits and, when the set point is reached, issue a control signal to the connected devices.
The DigiCity DCCA10.I3.485 series modules are software and hardware compatible and can be combined into an RS485 network simultaneously with modules from other manufacturers.
The module is available in a plastic case with IP 65 protection rating and is designed for mounting on a 35mm DIN rail. The module plastic is resistant to UV radiation, temperature changes from -45 to +70°C. The modules are designed and manufactured with an increased safety margin for each of their parts.
Design
Overall dimensions, mm | 71х90,2×57,5 |
---|---|
Supply voltage, V | 12V |
Power consumption from AC network, W | 3 |
Current control limits, A | Up to 5 |
Level of accuracy | 0,2 |
Number of controlled current circuits | 3 |
Degree of protection of the shell | IP20 |
Climate performance, °C | from -45 to +70 (U1, GOST 15150-69) |
Interfaces | RS-485 |
Installation location | DIN rail |
