Description

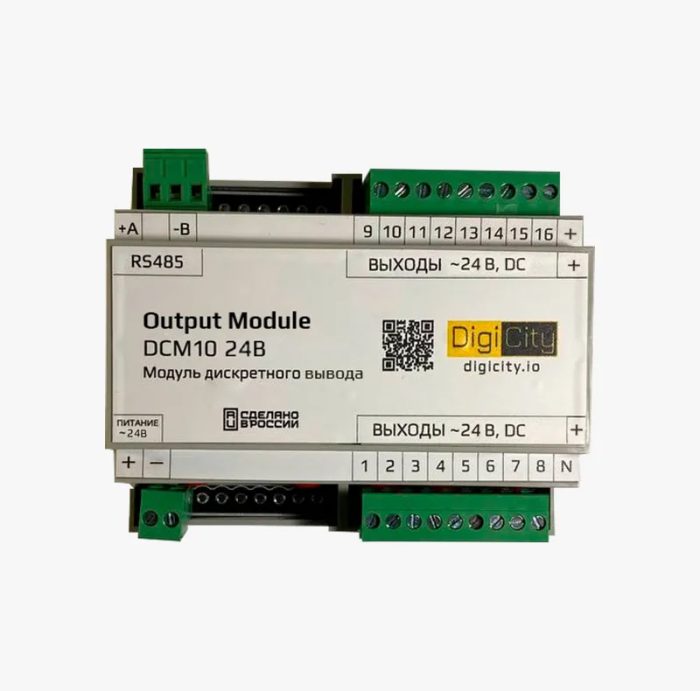

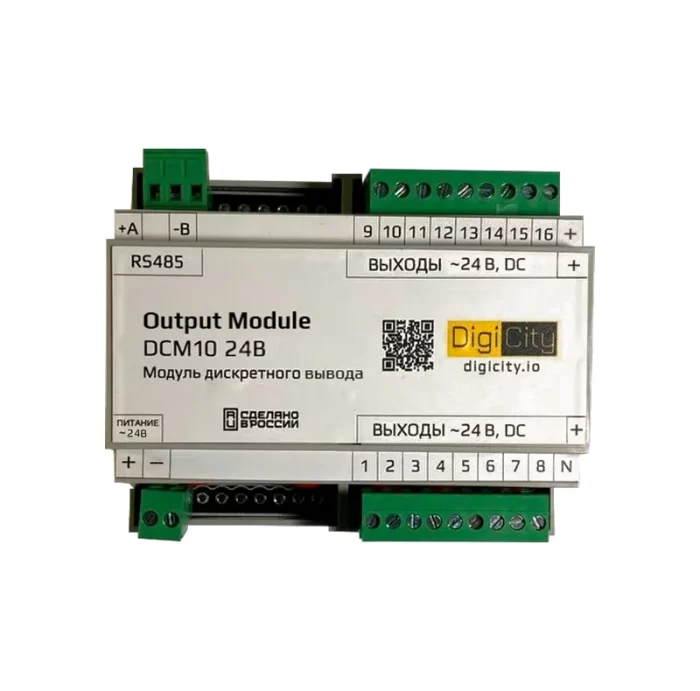

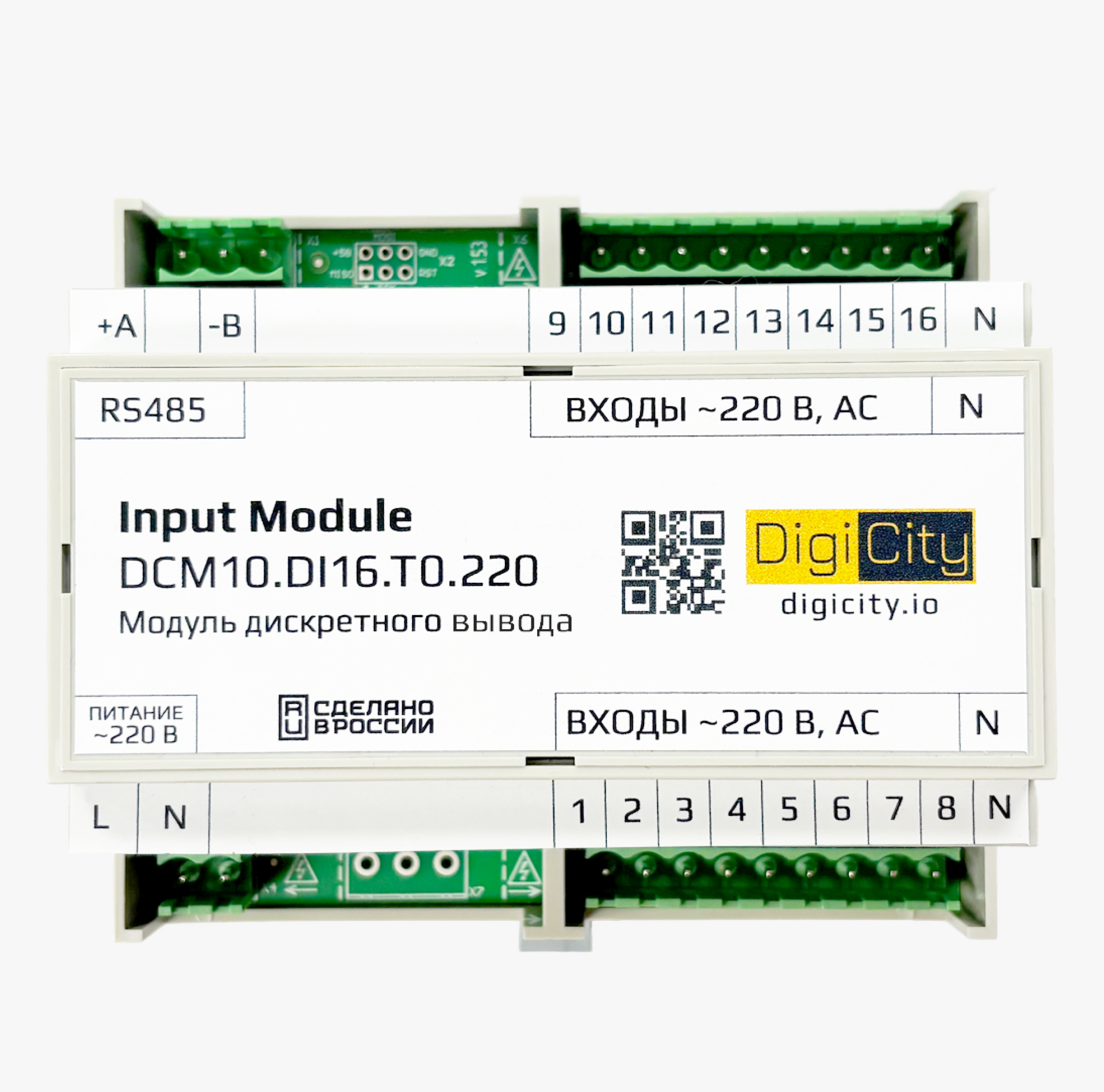

The DigiCity DCM10 external expansion module with discrete outputs is designed to output a control signal to a connected actuator (relay, starters, valves, solenoids, etc.). The module is used in control, protection and automation systems for energy systems and utilities, and household automation.
The modules perform the following functions:
- Output of discrete signals
Supported communication protocols of the RS-485 Modbus RTU interface network.
All necessary communication settings and module parameters are set programmatically via Modbus registers and are saved in the non-volatile memory of the module controller.
All functional parts of the module have galvanic isolation from each other:
- Цепи питания.
- Дискретные выходы.
- Интерфейс связи.
Communication capabilities:
Интерфейс: RS-485.
Поддерживаемые протоколы: Modbus RTU.
Скорость обмена по RS-485: 4800…115200 бит/с.
Modifications
Modification | DCM10.DO8.T2.220 | DCM10.DO16.T2.220 | |
---|---|---|---|
![]() | ![]() |
Outputs
Number of discrete outputs | 8 | 16 |
---|---|---|
Discrete Output Types | T0 — моностабильное реле T1 — транзистор с открытым истоком (управление исходящим током) T2 — симмистор T3 — симмистор с физической памятью состояния (управляемый бистабильным реле) | T0 — моностабильное реле T1 — транзистор с открытым истоком (управление исходящим током) T2 — симмистор T3 — симмистор с физической памятью состояния (управляемый бистабильным реле) |
Communication capabilities
Interface | RS-485 | RS-485 |
---|---|---|
Supported protocols | Modbus-RTU | Modbus-RTU |
RS-485 exchange rate, bit/s | 4800, 9600, 19200, 38400, 57600, 115200 | 4800, 9600, 19200, 38400, 57600, 115200 |
Design
Body material | Plastic | Plastic |
---|---|---|
Overall dimensions, mm | 55×90×55 | 110×90×55 |
Degree of protection | IP20 | IP20 |
Device weight, g | 100 | 200 |
Installation options | DIN rail/wall mounted | DIN rail/wall mounted |
Temperature, °C | from -40 to +70 | from -40 to +70 |
Относительная влажность воздуха (без конденсации), % | 90 | 90 |
Power supply type | DC | DC |
Supply voltage | 24В | 24В |
Power consumption | up to 3 W | up to 3 W |
Module | 1 pc. | 1 pc. |
Passport / Warranty card | 1 copy. | 1 copy. |
Quick Start Guide | 1 copy. | 1 copy. |
