Description

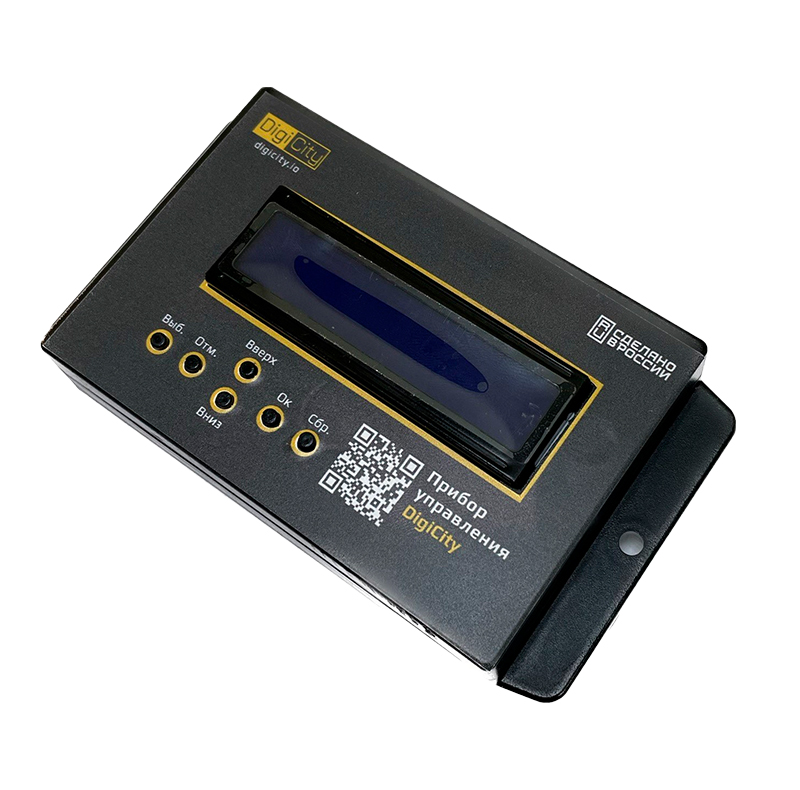

The DCLCD10.485 information panel is used to display and edit text and digital parameters of the system.
The device is a ready-made board with a liquid crystal display (Liquid Crystal Display) whose screen is capable of simultaneously displaying up to 32 characters (16 columns, 02 lines).
The device is supplied in a case by default (upon agreement, it can be made in the customer's case).
DigiCity DCCA10.I3.485 series modules are software and hardware compatible and can be connected to an RS485 network simultaneously with modules from other manufacturers.
Construction
| Overall dimensions, mm | 80х57×28 |
|---|---|
| Supply voltage, V | 12V |
| Power consumption from AC network, W | Up to 3 |
| Display resolution in pixels | 16х2 |
| Backlight | In stock |
| Backlight color | Blue/Green |
| Presence of a touch panel | unavailable |
| Display type | LCD |
| Degree of protection of the shell | IP20 (depending on the housing used) |
| Climate performance, °C | from -20 to +70 (U1, GOST 15150-69) |
| Interfaces | RS-485 |
| Installation location | Mounting into the case |
