Description

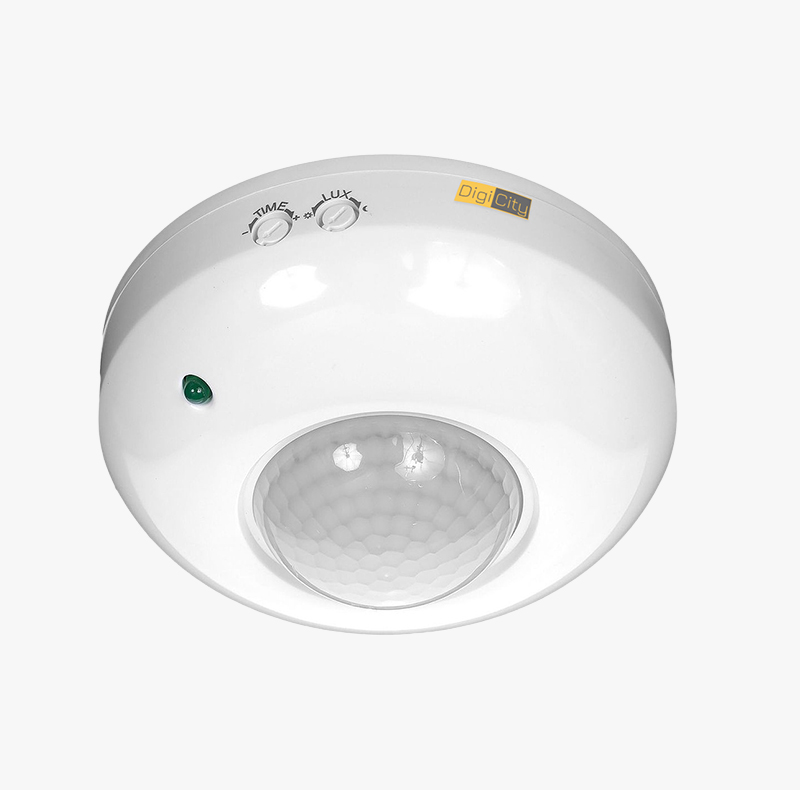

The DigiCity DCMS.360 motion sensor is used to turn on lights and monitor the surrounding environment or automatically initiate required actions in response to the movement of objects.
The module is manufactured in a light-grey impact-resistant plastic case, made of impact-resistant heat-resistant ABS plastic UL-94V0, and provides for mounting on a 35mm DIN rail. The module plastic is resistant to UV radiation, temperature changes from -45 to +70°C. The modules are designed and manufactured with an increased safety margin for each of their parts.
Подключение к модулю осуществляется через быстросъемные разъемы с винтовыми зажимами, что позволяет проводить быстрый монтаж и удобную эксплуатацию устройства.
Design
| Overall dimensions, mm | 85×85×115 |
|---|---|
| Supply voltage, V | 24В |
| Power consumption from AC network, W | 3 |
| Permissible DALI bus voltage, V | от 10.5 до 20.5 |
| Average current on bus 0/1-10, no more than, mA | 4 |
| Degree of protection of the shell | IP65 |
| Climate performance, °C | from -45 to +70 (U1, GOST 15150-69) |
| Interfaces | DALI, RS-485 |
| Installation location | DIN rail |
