Description

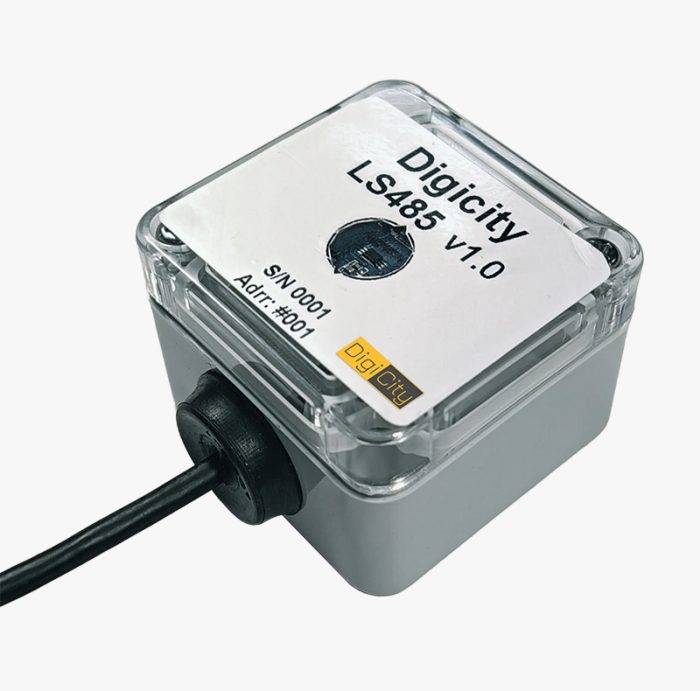

The DigiCity DCLS motion sensor is used for automatic control of artificial (electric) light sources.
Depending on the level of illumination of the surrounding space, the sensor is capable of sending a signal to turn on/off lamps, spotlights, lanterns and other lighting devices.
The module is available in a light gray impact-resistant plastic housing, made of UL-94V0 impact-resistant and heat-resistant ABS plastic, and can be mounted on a 35mm DIN rail. The module's plastic is resistant to UV radiation and temperature fluctuations ranging from -45°C to +70°C. The modules are designed and manufactured with an increased level of reliability for each component. They also feature a photo relay.
Construction
| Overall dimensions, mm | 85×85×115 |
|---|---|
| Supply voltage, V | 24 Volt |
| Power consumption from AC network, W | 3 |
| Permissible DALI bus voltage, V | from 10.5 to 20.5 |
| Average current on bus 0/1-10, no more than, mA | 4 |
| Degree of protection of the shell | IP65 |
| Climate performance, °C | from -45 to +70 (U1, GOST 15150-69) |
| Interfaces | DALI, RS-485 |
| Installation location | DIN rail |
